Brand Name : AUO
Model Number : P294IVN01.1
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : P294IVN01.1
Diagonal Size : 29.4"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 1920(RGB)×720 69PPI
Pixel Format : RGB Vertical Stripe
Active Area : 698.4(W)×261.9(H) mm
Light Source : WLED, 70K hours, With LED Driver
Display Mode : AMVA3, Normally Black, Transmissive
Display Colors : 16.7M 72%NTSC
Designed For : Digital Signage、Outdoor High Brightness、Stretched Bar LCD
P294IVN01.1 29.4 inch 1920*720 LCD Screen panel
P294IVN01.1 LCD Panel Product details :
Brand | AUO |
Model P/N | P294IVN01.1 |
Diagonal Size | 29.4" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×720 69PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 698.4(W)×261.9(H) mm |
Bezel Opening | 702.4(W)×256.9(H) mm |
Outline Dim. | 722.2(H)×285.7(V)×26.8(D) mm |
Treatment | Antiglare (Haze 28%), Hard coating (3H) |
Luminance | 700 cd/m² (Typ.) |
Contrast Ratio | 4000:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 8 (Typ.)(G to G) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Operating Mode | AMVA3, Normally Black, Transmissive |
Support Color | 16.7M 72%NTSC |
Light Source | WLED, 70K hours, With LED Driver |
Weight | 3.7Kgs (Typ.) |
Designed For | Digital Signage,Outdoor High Brightness,Stretched Bar LCD |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | LVDS (2 ch, 8-bit), 51 pinsConnector |
Power Supply | 12V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
P294IVN01.1 LCD Panel Shipping and Package :
P294IVN01.1 LCD Panel FAQ :
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of P294IVN01.1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for P294IVN01.1 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the P294IVN01.1 I receive can't work ?
A: P294IVN01.1 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
![]() |

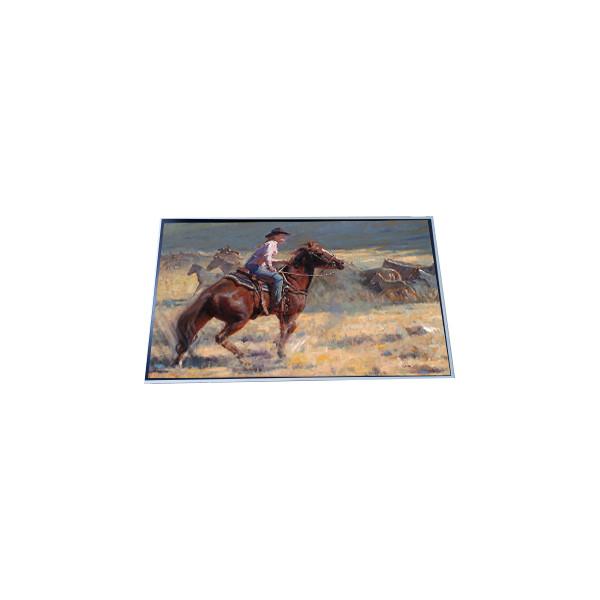

P294IVN01.1 29.4 inch 1920*720 LCD Screen panel Images |
