Brand Name : Toshiba Matsushita
Model Number : LTD121C33SF
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : LTD121C33SF
Diagonal Size : 12.1"
Resolution : 800(RGB)×600, SVGA 82PPI
Active Area : 246(W)×184.5(H) mm
Panel Type : a-Si TFT-LCD, LCM
Pixel Format : RGB Vertical Stripe
Lamp Type : CCFL
Application : Industrial
LTD121C33SF 12.1 inch LVDS LCD Screen Display Panel
LTD121C33SF LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTD121C33SF |
Diagonal Size | 12.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 800(RGB)×600, SVGA 82PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 246(W)×184.5(H) mm |
Bezel Opening | 249.0(W)×187.5(H) mm |
Outline Dim. | 278.3(H)×209(V) mm |
Treatment | - |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 500:1 (Typ.) (TM) |
View Direction | - |
Response Time | - |
Viewing Angle | - |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K |
Light Source | CCFL |
Weight | - |
Designed For | Industrial |
Frame Rate | - |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 6-bit)Connector |
LTD121C33SF 12.1 inch LVDS LCD Screen Display Panel |
LTD121C33SF LCD Panel Shipping and Package :
LTD121C33SF LCD Panel FAQ :
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: When would you ship,IF I order LTD121C33SF now?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
![]() |

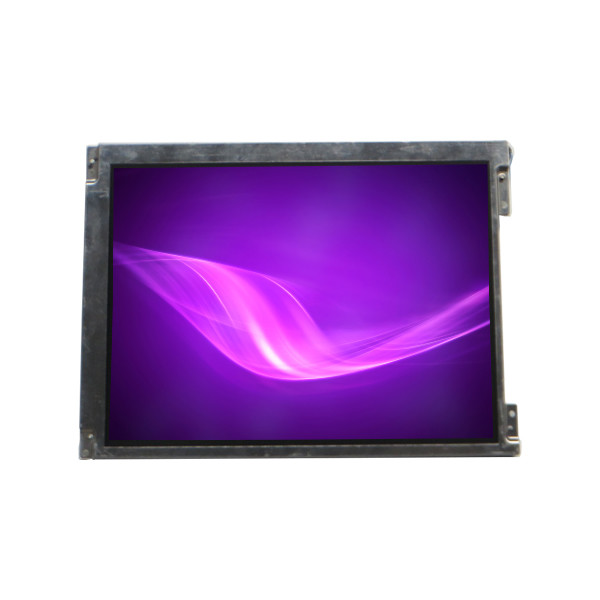

LTD121C33SF 12.1 inch LVDS LCD Screen Display Panel Images |
