Brand Name : Kyocera
Model Number : KCS072VG1MB-A44
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : KCS072VG1MB-A44
Diagonal Size : 7.2"
Panel Type : CSTN-LCD, LCM
Resolution : 640(RGB)×480, VGA 111PPI
Pixel Format : RGB Vertical Stripe
Active Area : 145.9(W)×109.42(H) mm
Lamp Type : 1 pcs CCFL, 20K hours, Optional
Used for : Industrial
KCS072VG1MB-A44 7.2 inch 640*480 LCD Screen Module For Kyocera
KCS072VG1MB-A44 LCD Panel Product details :
Brand | Kyocera |
Model P/N | KCS072VG1MB-A44 |
Diagonal Size | 7.2" |
Panel Type | CSTN-LCD, LCM |
Resolution | 640(RGB)×480, VGA 111PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 145.9(W)×109.42(H) mm |
Bezel Opening | 147.90(W)×111.42(H) mm |
Outline Size | 179.3(W)×130.5(H)×6.9(D) mm |
Treatment | Antiglare |
Luminance | 100 cd/m² (Typ.) |
Contrast Ratio | 30 : 1 (Typ.) (TM) |
Viewing Angle | 50/50/60/45 (Typ.)(CR≥2) |
Response | 220/110 (Typ.)(Tr/Td) ms |
Work Mode | STN, Normally Black, Transmissive |
Color Depth | Color 40%NTSC |
Backlight | 1 pcs CCFL, 20K hours, Optional |
Mass | 170g (Typ.) |
Used for | Industrial |
Refresh Rate | 75Hz |
Touchscreen | Without |
Signal Type | Parallel Data (1ch, 8-bit), 31 pinsConnector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 40 °C |
KCS072VG1Mb-A44 7.2 inch 640*480 LCD Screen Module For Kyocera |
KCS072VG1MB-A44 LCD Panel Shipping and Package :
KCS072VG1MB-A44 LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods KCS072VG1MB-A44 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of KCS072VG1MB-A44?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of KCS072VG1MB-A44 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
![]() |

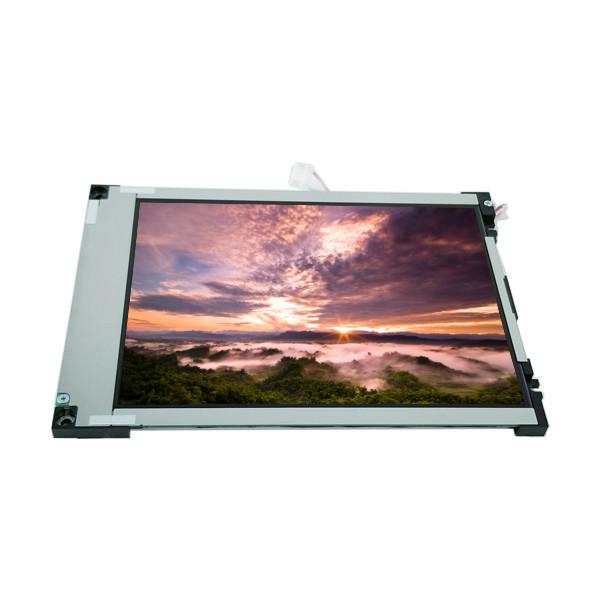

KCS072VG1MB-A44 7.2 inch 640*480 LCD Screen Module For Kyocera Images |
